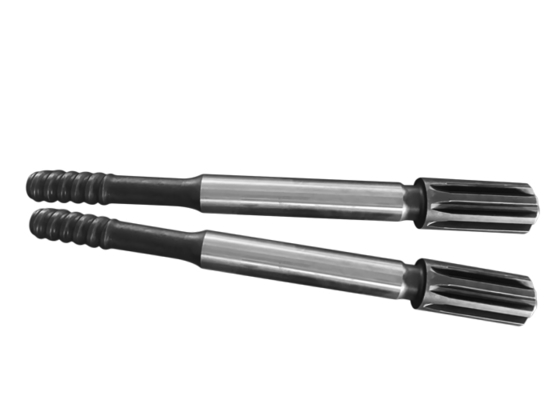

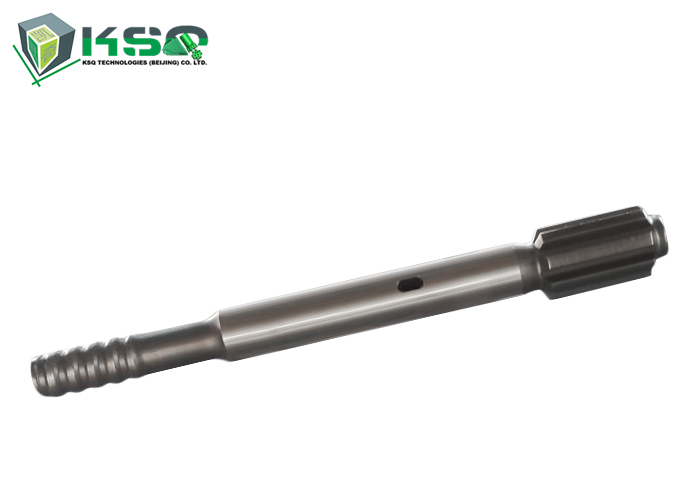

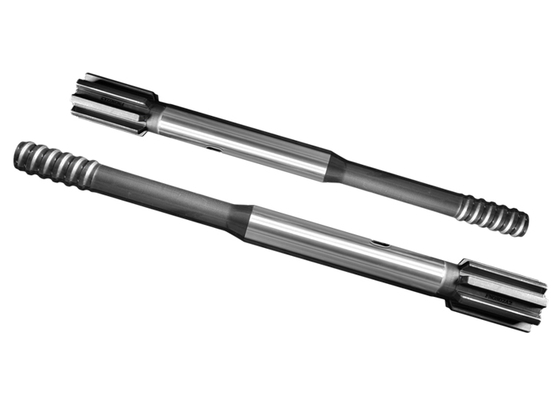

Shank Adapter T38 R38-575mm Drifting Shank Adapter

Shank Adapter T38 R38-575mm Drifting Shank Adapter

商品の詳細:
起源の場所: 中国
ブランド名: MIROC
証明: ISO
モデル番号: T38 R38 HLX5 575mm
お支払配送条件:
最小注文数量: 1
受渡し時間: 20-30
供給の能力: 3000
連絡先
詳細製品概要
モデル番号: R25 R28 R32 T38 T45 T51 ST58 ST68 GT60 表面処理: 研磨
材料: 炭素鋼 OEM/ODM: はい
アドバンテージ: 高性能 色: 顧客の要件
特徴: 高い耐久力のある 熱処理: 完全炭化物
ハイライト:

T38 shank adapter for rock drilling

,

R38-575mm drifting shank adapter

,

shank adapter T38 with warranty

Shank Adapter T38 R38-575mm Drifting Shank Adapter
Product Specifications
Attribute Value
Model NO R25 R28 R32 T38 T45 T51 ST58 ST68 GT60
Surface Treatment Polishing
Material Carbon Steel
OEM/ODM Yes
Advantage High Performance
Color Customer's Requirement
Feature High wear resistant
Heat treatment Fully carburization
Product Description

Shank adapters are used for transmitting power from the rock drill to the drill stems. There are two main types: male threaded shank adapters and female threaded shank adapters. Male shank adapters are more popular and are generally suited for drifting, tunneling and extension applications where high stresses are present. Female shank adapters are used when the drilling space is limited.

Different shank adapters are available for various brands and applications:

  • Atlas Copco (COP1238, COP1838, COP1032 and etc)
  • Furukawa (HD715, HD612, HD609, PD200 and etc)
  • Ingersoll-Rand (VL140, VL671, YH80A and etc)
  • Tamrock (HLX5, HL600, HL500, HL300, HL700, HL850, HL1000, HL1500 and etc)
Technical Specifications
Part Number Product Code and Brief Description Thread Length (mm) Weight (kg)
COP 1038HD, COP 1238
4148301061 COP 1038HD, COP 1238 [G1] R32 485 4.3
4148301062 COP 1038HD, COP 1238 [G2] R38 485 4.5
4148301063 COP 1038HD, COP 1238 [G3] T38 485 4.5
COP 1038HL
4148301064 COP 1038HL [G1] R32 575 4.9
4148301065 COP 1038HL [G2] T38 575 5.2
4148301066 COP 1038HL [G3] T45 575 6.1
Product Images
