| 起源の場所: | 中国 |
| ブランド名: | MIROC |
| 証明: | ISO |
| モデル番号: | MR116-124mm |
| 最小注文数量: | 1 |
|---|---|
| 受渡し時間: | 20-30 |
| 供給の能力: | 3000 |
| 使用法: | DTHドリラー用 | 材料: | 高マンガン鋼 |
|---|---|---|---|
| 採掘物件: | 石炭機械 | 製品名: | DTHのハンマー ビット |
| 応用: | 鉱山 採石場 水井 掘削 | アドバンテージ: | 耐磨性 高性能 競争力のある価格 |
| ボタンの形状: | 球形/弾道/ogiveボタン | フェイスデザイン: | 平面,凸,凸 |
| 形成: | 中等硬岩の形成 | キーワード: | DTH ハンマードリルビット |
| ハイライト: | RC hammer drill bit 124mm,reverse circulation drilling tools MR116,rock drilling tools with warranty |
||

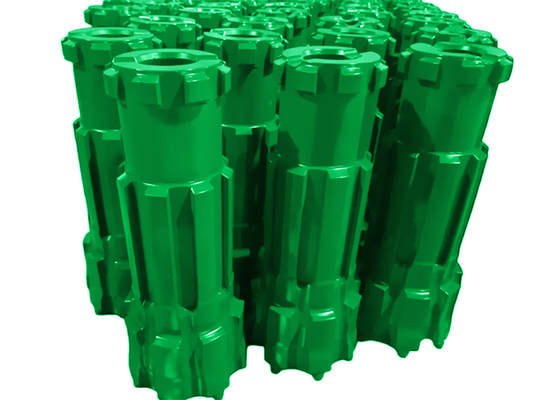

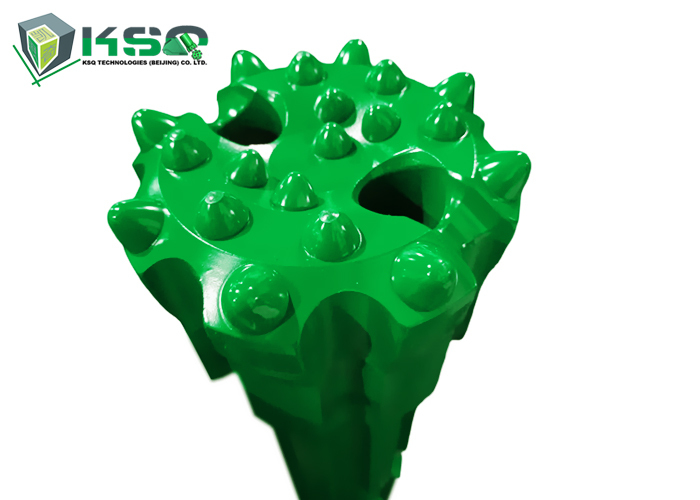

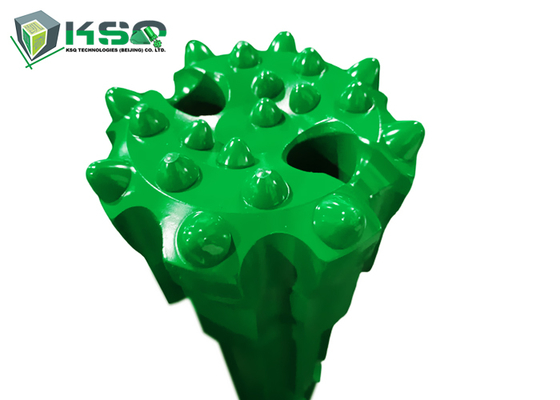

MR116 bit is not a standalone tool but a drill bit designed for use with a Mincon MR116 RC Hammer, a type of Reverse Circulation (RC) drilling equipment, which is used in mineral exploration and water well drilling to collect rock samples. The "MR116" refers to the hammer model, and the bit's size range is typically between 121mm and 127mm (4.75" to 5").
Application:
Used in Reverse Circulation (RC) drilling for mineral exploration and water well drilling.
Compatibility:
Designed to fit with the Mincon MR116 RC hammer.
Size:
The drill bit typically has a size range of 121mm – 127mm (4.75″ – 5″).
Function:
The bit's role is to cut into the rock and create a hole, while the RC hammer's design allows for fast and efficient sample collection.
MR Series Specifications
|
Hammer Model |
Hole |
Size Range |
|
MR116 |
4.75″ – 5″ |
121mm – 127mm |
|
MR120 |
5″ – 5.625″ |
127mm – 143mm |
|
MR132 |
5.4″ – 5.75″ |
137mm – 146mm |
Specifications:
1) face design: flat, convex, concave
2) inserts design: spherical, ballistic, parabolic
Features:
1) reliable quality
2) long service life
3) smooth flushing effect
4) designed to work with RC hammers
