| 起源の場所: | 中国 |
| ブランド名: | MIROC |
| 証明: | ISO |
| モデル番号: | R32-41mm |
| 最小注文数量: | 1 |
|---|---|
| 受渡し時間: | 20-30 |
| 供給の能力: | 3000 |
| 表面処理: | スプレーペイント | 製造プロセス: | スタンピング |
|---|---|---|---|
| 材料: | タングステンカーバイド | 糸: | R32 |
| 色: | カスタマイズ | 使用法: | ウェルドリル、金属掘削、石積み掘削、採石場の掘削、鉱山掘削 |
| ボタンのスタイル: | 球形、放物線、弾道ボタン | 仕様: | 直径41mm |
| ハイライト: | R32-41mm thread button bits,rock drill machine drifter rod bits,mining bit with R32 thread |
||
The button bit has higher technical content, longer drilling time and higher drilling efficiency. Button bit has large bearing capacity, good wear resistance and fast drilling speed. According to the different carbide teeth, the tooth shape can be divided into hemispherical, conical and parabolic buckles and other types.
It is made of high-quality steel raw materials through quenching and tempering treatment to improve the hardness and toughness of the product. It is widely used in granite and marble quarries, gold mines, railways, tunnels, etc., suitable for fixed (short hole) and blasting drilling systems. High cost performance. The delivery is timely, and the design, product quantity and button quantity can be delivered according to customer requirements.

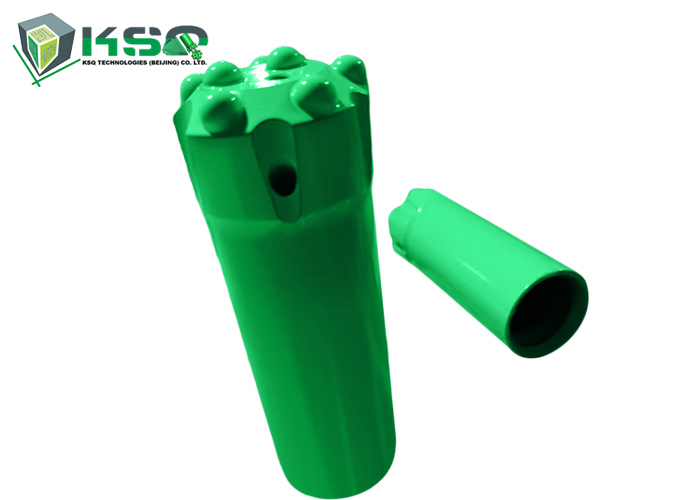

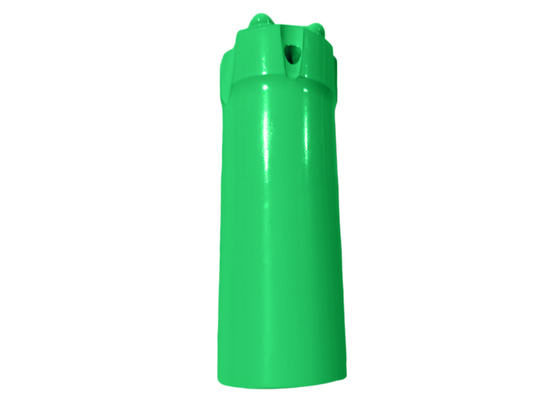

Product Name: R32 Drill Bits
Thread type: R32
Head diameters: 41mm ~ 76mm
Face designs: flat face

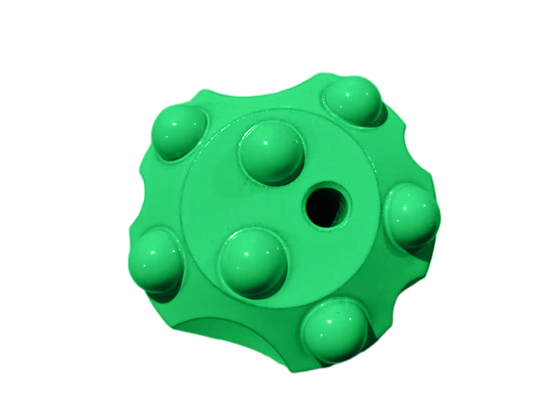

Carbide shape: Dome, Ballistic, Semi-Ballistic
Skirt designs: Standard, Retrac
| Thread | Diameter range | Skirt Design | Face Design | Button Design |
|---|---|---|---|---|
| R22 | 35 - 45mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R25 | 33 - 57mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R28 | 36 - 51mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R32 | 41 - 89mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| R35 | 48 - 51mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| R38 | 64 - 102mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T38 | 57 - 102mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T45 | 70 - 127mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T51 | 76 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T60 | 89 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| ST58 | 89 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| GT60 | 93 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| ST68 | 102 - 152mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
