| 起源の場所: | 中国 |
| ブランド名: | MIROC |
| 証明: | ISO |
| モデル番号: | R32-51mm |
| 最小注文数量: | 1 |
|---|---|
| 受渡し時間: | 20-30 |
| 供給の能力: | 3000 |
| タイプ: | 石の穴あけ工具 | 材料: | 合金鋼とウランガムカービッド |
|---|---|---|---|
| 使用法: | ロックドリル | クラス: | 懸命の媒体 |
| 適用する: | ドリフトとトンネリング | ビットフェイス: | 平らな面ビット、凸面面ビット、凹面面ビット |
| プロセス: | 鍛造+加工+表面処理 | ボタンの形状: | 球形/弾道/放物線/鋭い/faltボタン |
| ポートホール: | 要求として | ||
| ハイライト: | R32 retract rock drill bit,51mm rock drilling tools,custom retract drill bit |
||

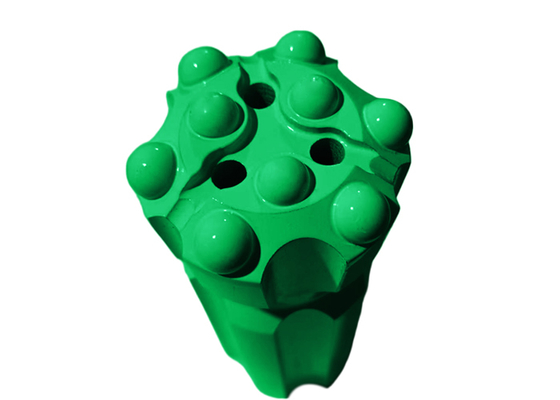

R32 51mm thread button bit is used for tunneling and underground mining, which is very cost effective when compared to other famous brands. Our R32 button bit is made with high quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.
According to different drilling applications, we have different designs to meet customers' needs with good quality and competitive pricing.
| Thread | Diameter Range | Skirt Design | Face Design | Button Design |
|---|---|---|---|---|
| R22 | 35 - 45mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R25 | 33 - 57mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R28 | 36 - 51mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R32 | 41 - 89mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| R35 | 48 - 51mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| R38 | 64 - 102mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T38 | 57 - 102mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T45 | 70 - 127mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T51 | 76 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T60 | 89 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| ST58 | 89 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| GT60 | 93 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| ST68 | 102 - 152mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
