| 起源の場所: | 中国 |
| ブランド名: | MIROC |
| 証明: | ISO |
| モデル番号: | DHD3.5-95mm |
| 最小注文数量: | 1 |
|---|---|
| 受渡し時間: | 20-30 |
| 供給の能力: | 3000 |
| 使用法: | 井戸掘削、採掘、建設、採石 | 形状 - 顔: | 平らか凹か凸か |
|---|---|---|---|
| 空気圧: | 高気圧 | テクノロジー: | サーマルインサート |
| タイプ: | DTHのハンマー ビット | 材料: | 合金鋼 |
| 品質: | 100%の質の類似の世界の上のクラスのブランド | 利点: | 高品質と工場価格 |
| ハイライト: | DTH hammer drill bit for mining,95mm rock drilling tool,water well drilling rig bit |
||

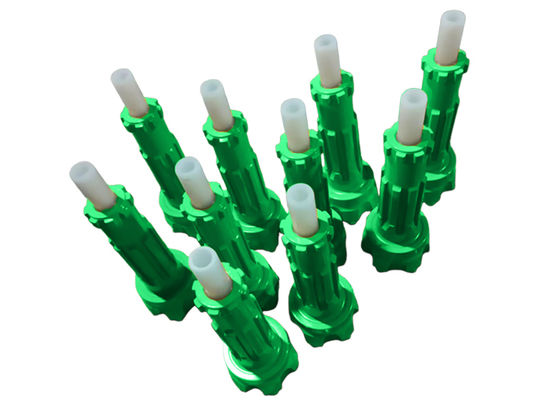

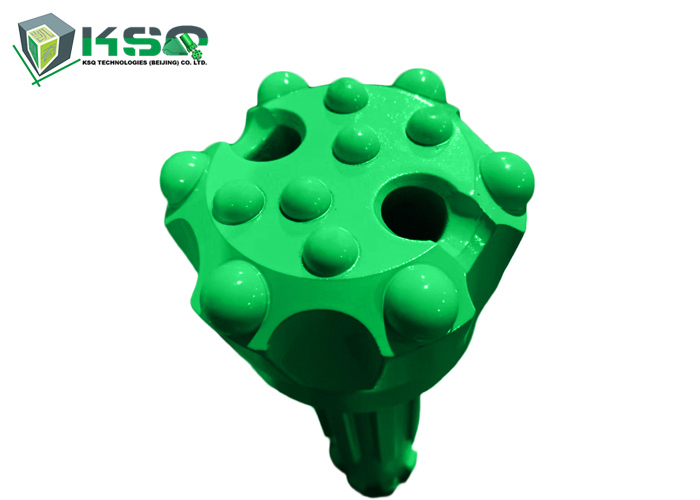

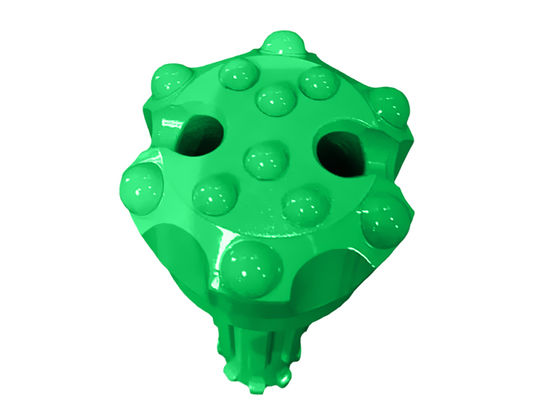

The DHD3.5 drill bit is a common DTH hammer drill bit model, widely used in mining, geological exploration, water well drilling, and construction projects. It connects with the drill pipe through API standard threads to ensure stability and reliability.
Manufactured with high-quality materials and advanced technology, the DHD3.5 drill bit offers extended service life and reduced replacement frequency.
This high air pressure DTH drill bit features our newest design and represents one of the most advanced DTH drill bits available worldwide.
Ideal for use in mining, energy, metallurgy, geology, coal, water conservancy, chemical industry, and road construction applications.
| Bit Diameter (mm) | Bit Diameter (inch) | Buttons (Front) | Buttons (Gauge) | Flushing Holes | Weight (kg) | Part Number |
|---|---|---|---|---|---|---|
| 90 | 3 1/2 | 4×12, 2×12 | 8×12 | 2 | 4.5 | 4148301219 |
| 95 | 3 3/4 | 4×12, 2×12 | 8×12 | 2 | 4.8 | 4148301220 |
| 100 | 3 7/8 | 4×13, 2×13 | 8×13 | 2 | 5 | 4148301221 |
| 105 | 4 1/8 | 4×14, 2×14 | 8×14 | 2 | 5.5 | 4148301222 |
| Bit Diameter (mm) | Bit Diameter (inch) | Buttons (Front) | Buttons (Gauge) | Flushing Holes | Weight (kg) | Part Number |
|---|---|---|---|---|---|---|
| 90 | 3 1/2 | 6×12 | 8×12 | 2 | 4.5 | 4148301223 |
| 95 | 3 3/4 | 6×12 | 8×12 | 2 | 4.8 | 4148301224 |
| 100 | 3 7/8 | 6×13 | 8×13 | 2 | 5 | 4148301225 |
| 105 | 4 1/8 | 6×14 | 8×14 | 2 | 5.5 | 4148301226 |
