| 起源の場所: | 中国 |
| ブランド名: | MIROC |
| 証明: | ISO |
| モデル番号: | T38-64mm |
| 最小注文数量: | 1 |
|---|---|
| 受渡し時間: | 20-30 |
| 供給の能力: | 3000 |
| 糸ボタン ビット: | T38 | 長さ: | 切株長 |
|---|---|---|---|
| 使用法: | 金属穴あけ、石材穴あけ | 色: | 要求に応じて |
| アドバンテージ: | 高性能 | 応用: | 石炭、鉱石、井戸 |
| サイズ: | 64mmから89mm | 仕様: | 糸ボタン ビット |
| ハイライト: | T38 flat face rock drill bit,spherical thread button bit for mining,64mm rock drilling tools |
||

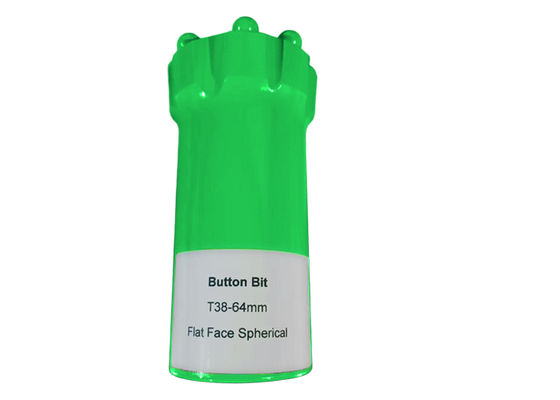

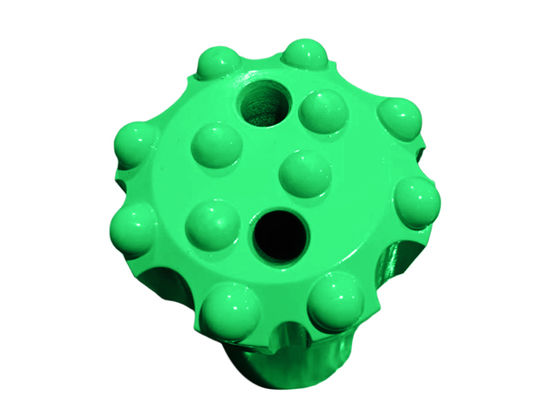

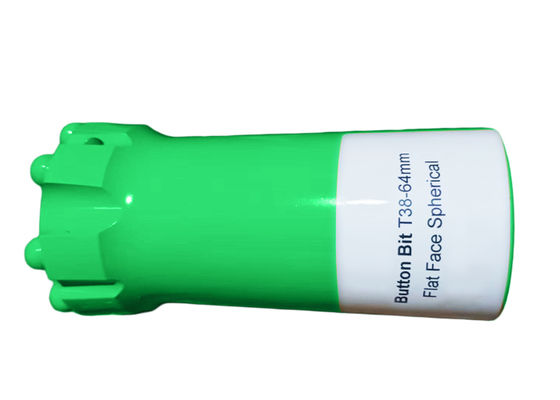

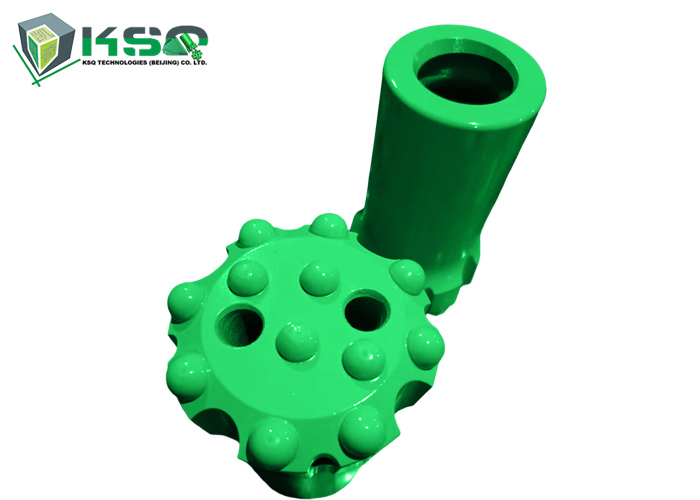

Thread Ball Tooth Drill Bit! Made from high-quality alloy steel rods and tungsten carbide, this drill bit undergoes professional technical heat treatment to ensure unmatched durability and performance.
With its versatile body types, including the ordinary and telescopic types, this drill bit caters to all your drilling needs. And the wide range of thread types, such as R22, R25, R28, R32, R38, T38, T45, T51, ST58, ST68, and GT60, allows you to choose the perfect fit for your specific requirements.
Featuring a diameter range of 32mm to 152mm, the Thread Ball Tooth Drill Bit is suitable for various drilling applications. Its button bit shapes include spherical and ballistic, while the face shape options are flat and drop-shaped.
| Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number | ||||
|---|---|---|---|---|---|---|---|---|
| mm | inch | Front | Gauge | Angle | Front | Side | kg | |
| 64 | 2 1/2 | 3×11 | 6×12 | 35° | 3 | - | 1.8 | 4148300722 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 1.6 | 4148300723 |
| 64 | 2 1/2 | 3×10, 1×10 | 6×11 | 35° | 3 | - | 1.7 | 4148300724 |
| 70 | 2 3/4 | 4×11 | 8×11 | 40° | 2 | - | 1.9 | 4148300725 |
| 70 | 2 3/4 | 4×10, 1×10 | 8×11 | 30° | 4 | - | 1.9 | 4148300726 |
| 76 | 3 | 4×11 | 8×11 | 40° | 2 | - | 2.4 | 4148300727 |
| 76 | 3 | 5×11 | 8×13 | 35° | 2 | 1 | 2.4 | 4148300728 |
| 76 | 3 | 3×11, 1×11 | 6×12 | 35° | 3 | 1 | 2.6 | 4148300729 |
| 76 | 3 | 4×11, 1×11 | 8×12 | 35° | 4 | - | 2.6 | 4148300730 |
| 76 | 3 | 4×11, 1×11 | 8×11 | 40° | 4 | - | 2.6 | 4148300731 |
| 89 | 3 1/2 | 5×13 | 8×13 | 35° | 2 | - | 3.3 | 4148300732 |
| 89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | - | 3.3 | 4148300733 |
| 89 | 3 1/2 | 3×11, 2×11 | 6×13 | 35° | 3 | 1 | 3.3 | 4148300734 |
| 89 | 3 1/2 | 4×11, 1×11 | 8×13 | 35° | 4 | - | 3.3 | 4148300735 |
| 89 | 3 1/2 | 4×13, 1×13 | 8×13 | 35° | 4 | - | 3.3 | 4148300736 |
Get ready to take your mining endeavors to new heights with this remarkable threaded button bit. Order yours today and witness the difference it makes in your operations!
