Name: 110-120mm Low Air Pressure DTH Hammer Drill Bit for Water and Mine with Alloy Steel Construction
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: CIR110
Price: 508.50 USD
Availability: InStock

ホーム製品ロック掘削ツール

110-120mm Low Air Pressure DTH Hammer Drill Bit for Water and Mine with Alloy Steel Construction

商品の詳細:

起源の場所:	中国
ブランド名:	MIROC
証明:	ISO
モデル番号:	CIR110

お支払配送条件:

最小注文数量:	1
受渡し時間:	20-30
供給の能力:	3000

連絡先

詳細製品概要

型番:	CIR110	タイプ:	採掘用ドリルビット
材料:	合金鋼	使用法:	井戸掘削、鉱山掘削
ハンマーシャンク:	CIR110	Diaをかんだ:	4インチ～8インチ (110mm～200mm)
ビット顔形:	ファルトフェイス/コンベックスフェイス/ドロップフェイス	仕様:	ISO9001
ハイライト:	Low Air Pressure DTH Hammer Drill Bit , 110-120mm Button Bit , Alloy Steel Down The Hole Bit

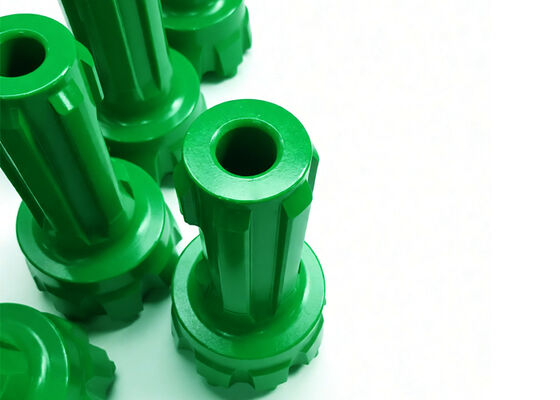

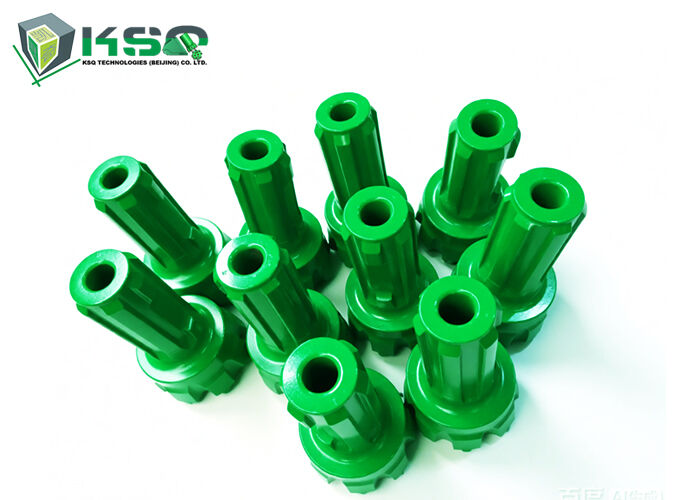

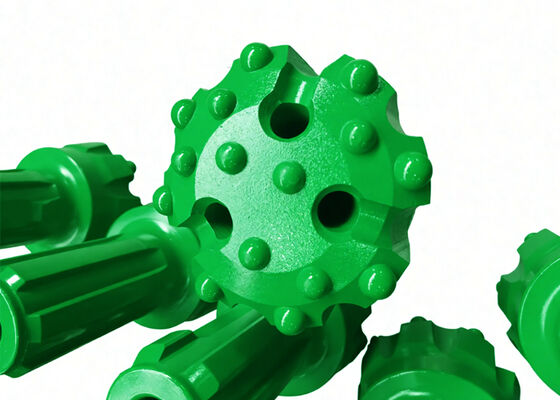

CIR110-120mm Low Air Pressure DTH Hammer Drill Bit for Water and Mine

Product Overview

KSQ's low air pressure DTH hammer button bits are engineered to deliver exceptional drilling capacity, remarkable reliability, and impressively low operating costs. By integrating advanced production technologies with skillful design and high-quality materials, we guarantee outstanding performance, unparalleled durability, and long-lasting service life. These superior drilling tools are the preferred choice for industries demanding precision and strength, including mining and construction. Our cutting-edge tools excel in geotechnical engineering, adeptly handling diverse challenging rock types from the hardest formations to those with lesser toughness.

Technical Specifications

Type	Diameter (mm)	Spline NO	Weight (kg)
CIR65	65	4	1.5
CIR65	68	4	1.6
CIR70	76	4	2.0
CIR70	85	4	2.3
CIR90	90	6	3.75
CIR90	110	6	4.8
CIR110	110	6	6.2
	130	6	8.05
	140	6	9.0
CIR150	155	6	16.7
	165	6	17.55
	178	6	18.85
CIR170	195	6	24.2
CIR170	203	6	26.35
