| 製品名: | 角型ボタン | 材料: | タングメンカルビッド |
|---|---|---|---|
| 応用: | 採石、小穴掘削 | アドバンテージ: | 高性能 |
| 色: | カスタマイズされた | 使用法: | 鉱業 /採石 /トンネリング |
| ボタンタイプ: | 半球状/放物線状/弾道状/円錐状 | ||
| ハイライト: | 7 Degree Taper Button Bit,34mm Tapered Button Bit,Tungsten Carbide Buttons Drill Bit |
||

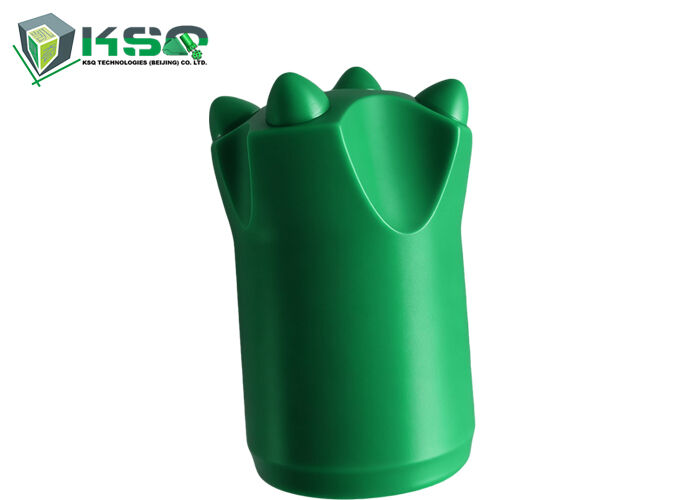

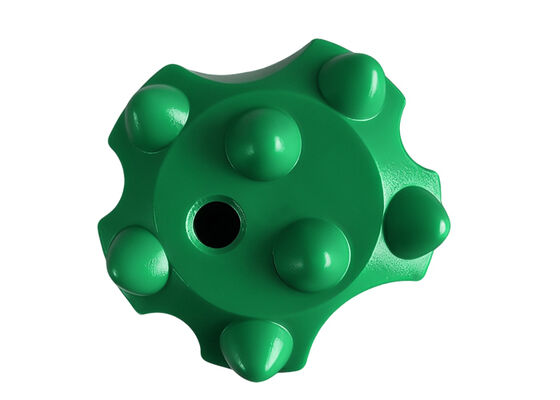

Complementing our range of precision reaming tools, KSQ manufactures high-performance taper button bits engineered for direct drilling applications. Designed for speed and durability, these bits are ideal for small-hole drilling in mining, quarrying, and construction projects.
| Bit Diameter | Buttons and Size (mm) | Flushing Hole | Weight | Part Number |
|---|---|---|---|---|
| 32 mm 1 1/4 inch |
2x7 5x7 35° |
1 Front 1 Side |
0.3 kg | 4148300174 |
| 33 mm 1 2/7 inch |
2x7 5x7 35° |
1 Front 1 Side |
0.31 kg | 4148300175 |
| 35 mm 1 3/8 inch |
2x7 5x8 35° |
1 Front 1 Side |
0.36 kg | 4148300176 |
| 38 mm 1 1/2 inch |
2x7 5x9 35° |
1 Front 1 Side |
0.41 kg | 4148300177 |
| 41 mm 1 3/5 inch |
2x7 5x9 35° |
1 Front 1 Side |
0.42 kg | 4148300178 |
