Name: High Performance T38 64mm Thread Uniface Carbide Button Bit For Rock Mining Blasting Quarry Top Hammer
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T38
Price: 60.00 USD
Availability: InStock

ホーム製品ロック掘削ツール

High Performance T38 64mm Thread Uniface Carbide Button Bit For Rock Mining Blasting Quarry Top Hammer

商品の詳細:

起源の場所:	中国
ブランド名:	MIROC
証明:	ISO
モデル番号:	T38

お支払配送条件:

最小注文数量:	1
価格:	$60.00
パッケージの詳細:	木製ケース
受渡し時間:	20-30
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力:	3000

連絡先

詳細製品概要

製品名:	ロックドリルボタンビット	特徴:	高い掘削速度
炭化物の形:	ドーム、弾道、準弾道	フェイスタイプ:	フラット,ユニフェイス,ドロップセンター
アプリケーション:	採掘および採石場の掘削	パッキング:	木製ケース
ハイライト:	T38 carbide button bit , 64mm thread rock drill bit , uniface carbide bit for mining

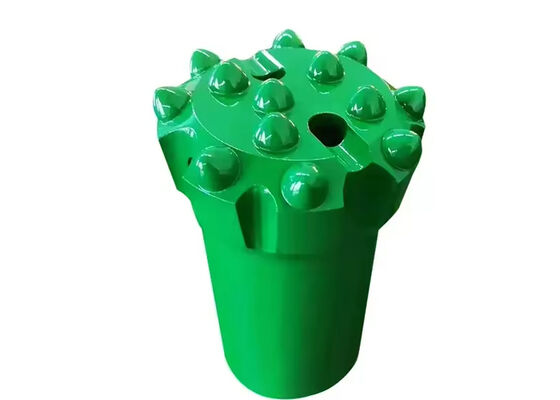

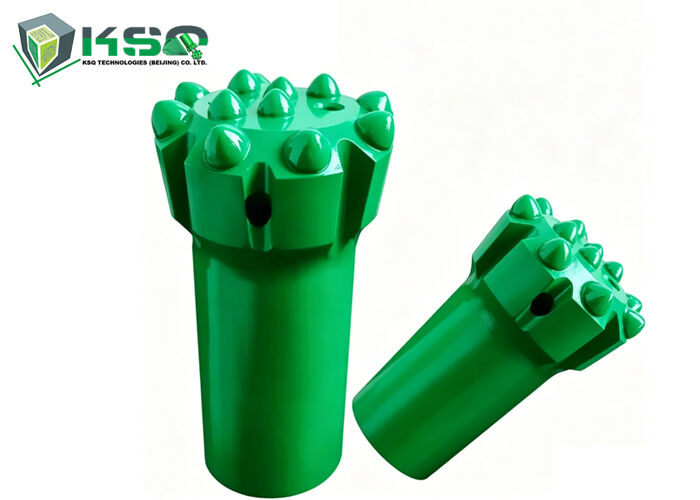

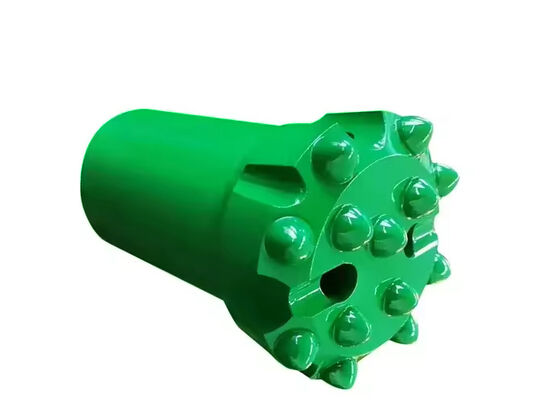

High Performance T38 64mm Thread Uniface Carbide Button Bit

Product Overview

The T38 thread button bit delivers exceptional wear resistance in medium-hard to hard and abrasive rock formations. Engineered with high-grade spherical tungsten carbide inserts, this drilling tool provides strong resistance against carbide fracture for reliable performance in demanding conditions.

Applications

Underground mining operations
Tunneling and quarrying projects
Hard rock formations including granite, basalt, and limestone

Competitive Advantages

High-grade tungsten carbide inserts - Engineered for superior hardness and impact resistance
Low operating cost - Minimal power consumption with easy installation and disassembly
Long service life - Excellent drilling penetration with strong corrosion resistance
Strict quality control - Advanced detection methods and testing equipment ensure consistent high quality

Product Specifications

Type	Specification / Keyword
Thread Type	T38
Diameter	64mm, 70mm, 76mm, 89mm
Button Type	Thread Button Bit, Uniface Button Bit, Carbide Button Bit
Application	Rock Drill Button Bit, Mining Button Bit, Blasting Button Bit, Quarry Button Bit
Tool Type	Top Hammer Bit, Rock Stone Bit
Material	High Manganese Bit, Forged Button Bit
Performance	Wear Resistant Bit, High Performance Bit, High Efficiency Bit, Durable Drill Bit
Customization	Customizable OEM Bit

T38 Thread Button Bit Detailed Specifications

Diameter	Buttons and Size (mm)	Flushing hole	Weight (kg)
64mm (2 1/2")	3×11	3	1.8
64mm (2 1/2")	4×10	2	1.6
64mm (2 1/2")	3×10, 1×10	3	1.7
70mm (2 3/4")	4×11	2	1.9
70mm (2 3/4")	4×10, 1×10	4	1.9
70mm (2 3/4")	3×10, 1×10	3	1.8
76mm (3")	4×11	2	2.4
76mm (3")	5×11	2, 1	2.4
76mm (3")	3×11, 1×11	3, 1	2.6
76mm (3")	4×11, 1×11	4	2.6
76mm (3")	4×11, 1×11	4	2.6
89mm (3 1/2")	4×13	2	3.3
89mm (3 1/2")	5×13	2	3.3
89mm (3 1/2")	6×11	2	3.3
89mm (3 1/2")	3×11, 2×11	3, 1	3.3
89mm (3 1/2")	4×11, 1×11	4	3.3
89mm (3 1/2")	4×13, 1×13	4	3.3
