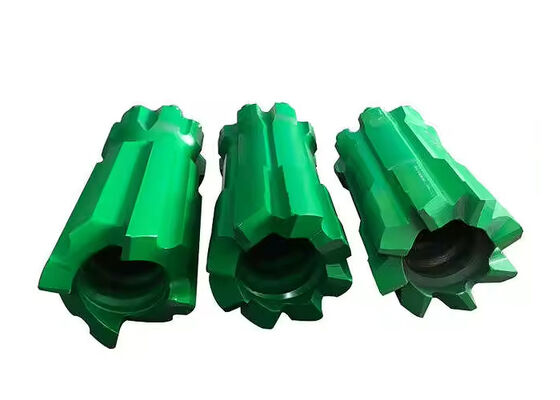

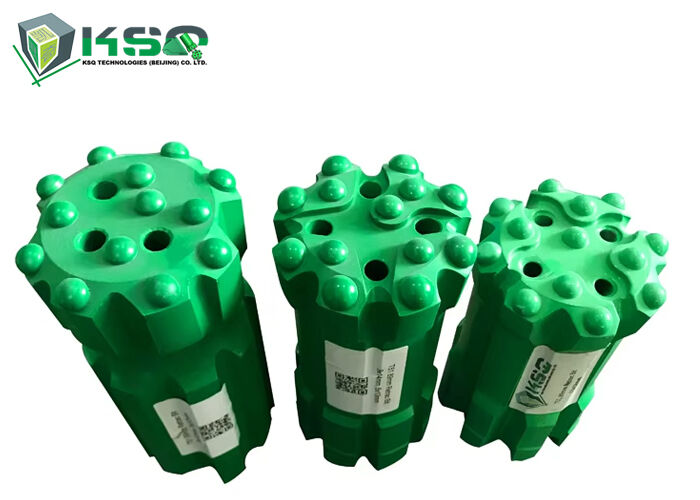

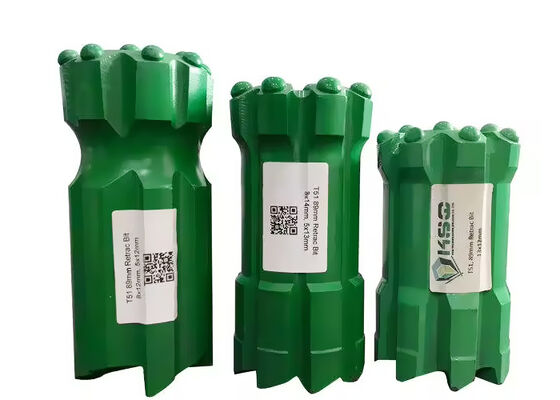

Name: MIROC 89mm T51 Retractable Carbide Button Drill Bit for Mining Quarry
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: 89mm T51
Price: 89 USD
Availability: InStock

ホーム製品ロック掘削ツール

MIROC 89mm T51 Retractable Carbide Button Drill Bit for Mining Quarry

商品の詳細:

起源の場所:	中国
ブランド名:	MIROC
証明:	ISO
モデル番号:	89mm T51

お支払配送条件:

最小注文数量:	1
価格:	89
パッケージの詳細:	木製ケース
受渡し時間:	20-30
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力:	3000

連絡先

詳細製品概要

型番:	T51	色:	お客様のご要望
タイプ:	ボタンビット、ネジビット	材料:	合金鋼とウランガムカービッド
該当する業界:	建設工事、エネルギー、鉱業	ボタンの形状:	球状 / バリスティック
ロッククラス:	柔らか,中等,硬い	角度:	30°-35°
ハイライト:	MIROC 89mm carbide drill bit , retractable mining drill bit , T51 quarry drilling tool

MIROC 89mm T51 Retractable Carbide Button Drill Bit for Mining Quarry

Product Overview

The retractable design enables carbide ballistic buttons to move slightly upon impact, absorbing shock and preventing direct damage to the steel body. This innovative design significantly extends bit life compared to standard fixed button bits, making it ideal for demanding drilling conditions where button loss is common.

Applications

Mining industry operations
Tunneling and underground engineering
Open pit mining
Construction drilling
Blast hole drilling
Civil engineering operations
Road, gas line, pipe, and trench projects
Quarry work
Rock anchoring and ground stabilization projects
Water well drilling

Key Benefits

Longer service life and durability
Reduced downtime for bit changes
Consistent drilling performance in tough conditions

Technical Specifications

T51 Retrac Button Bit	Bit Dia. (mm)	Bit Dia. (inch)	Buttons and Size (mm)	Flushing Hole	Weight (kg)	Product Code
Retrat Button Bit, Drop Center Spherical Buttons, R11XX	89	3 1/2	Front: 3x11, 2x11 Gauge: 6x13	Front: 3 Side: 0	5.3	R1189-T51-S
Retrat Button Bit Spherical Buttons, R12XX	89	3 1/2	Front: 4x13 Gauge: 8x13	Front: 2 Side: 0	5.3	R1289-T51-S
Retrat Button Bit Spherical Buttons, R12XX	102	4	Front: 4x14 Gauge: 8x14	Front: 2 Side: 0	7.3	R12102-T51-S
Retrat Button Bit, Drop Center Spherical Buttons, R13XX	89	3 1/2	Front: 4x11,1x11 Gauge: 8x13	Front: 4 Side: 0	5.3	R1389-T51-S-1
Retrat Button Bit, Drop Center Spherical Buttons, R13XX	89	3 1/2	Front: 4x13,1x13 Gauge: 8x13	Front: 4 Side: 0	5.3	R1389-T51-S-2
Retrat Button Bit, Drop Center Spherical Buttons, R13XX	102	4	Front: 4x13,1x13 Gauge: 8x14	Front: 4 Side: 0	7.3	R13102-T51-S-1
Retrat Button Bit, Drop Center Spherical Buttons, R13XX	102	4	Front: 4x13,1x13 Gauge: 8x14	Front: 4 Side: 1	7.3	R13102-T51-S-2
