Name: Factory Direct Hot Insert Retrac Bit Good Performance Energy Mining Bit For Rock Drilling Quarry Top Hammer Tool
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T38
Price: 48 USD
Availability: InStock

ホーム製品ロック掘削ツール

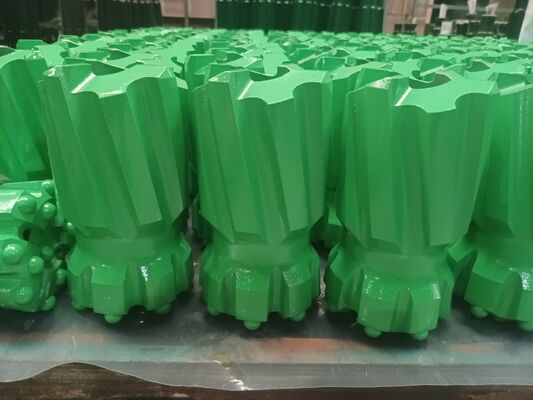

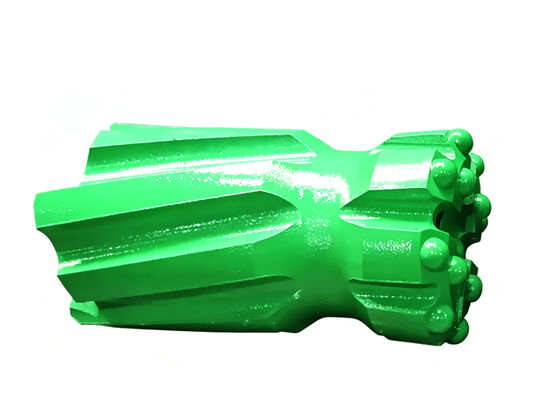

Factory Direct Hot Insert Retrac Bit Good Performance Energy Mining Bit For Rock Drilling Quarry Top Hammer Tool

商品の詳細:

起源の場所:	中国
ブランド名:	MIROC
証明:	ISO
モデル番号:	T38

お支払配送条件:

最小注文数量:	1
価格:	＄48
パッケージの詳細:	木箱
受渡し時間:	20-30
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力:	30000

連絡先

詳細製品概要

材料:	高品質の鉄鋼とタングメンカービッド	応用:	ベンチボーリングとさく岩掘削
アドバンテージ:	高性能	色:	リクエスト
使用法:	掘削と建設	ボーイタイプ:	ノーマルタイプまたはリトラクトタイプ
岩層:	硬い岩	スレッドを終了します:	T38
品質:	トップ	移行:	航空/海上/特急
ハイライト:	Hot Insert Retrac Bit for Rock Drilling , Energy Mining Bit for Quarry Drilling , Top Hammer Tool with Good Performance

Factory Direct Hot Insert Retrac Bit - High Performance Energy Mining Bit for Rock Drilling

Product Overview

Elevate your rock drilling efficiency with our premium KSQ Thread Button Drill Bits. Engineered for durability and precision, these bits are manufactured from high-grade alloy steel and reinforced with tungsten carbide for maximum wear resistance. Whether you are tackling a large-scale mining project or a construction foundation, our drill bits deliver consistent penetration rates and extended service life.

Key Features & Benefits

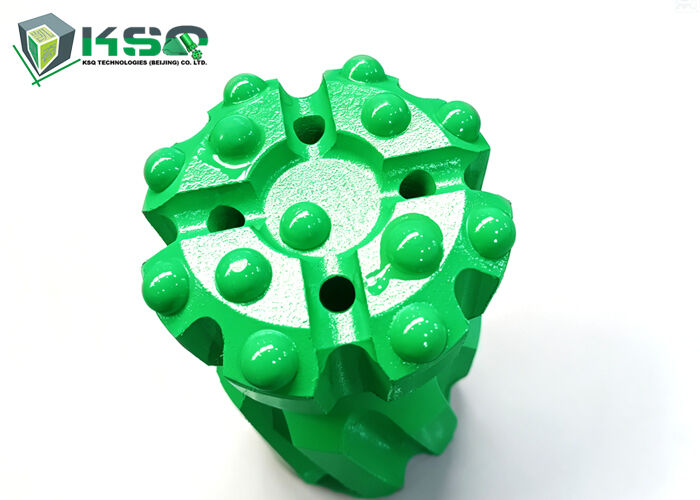

Superior Material Composition: Crafted from 42CrMo alloy steel and equipped with YK05 tungsten carbide tips, ensuring exceptional toughness and resistance to impact.
Advanced Heat Treatment: Our specialized heat treatment process enhances structural integrity, providing the perfect balance between hardness and flexibility to withstand extreme drilling conditions.
Energy Efficiency: The optimized button design minimizes energy loss during drilling, translating to faster penetration and reduced operational costs.
Versatile Application: Suitable for a wide range of rock formations, from soft and loose-medium rocks to extremely hard rock (F=8~18).

Product Specifications

T38 Retrac Button Bit	Bit Dia. (mm)	Bit Dia. (inch)	Buttons and Size (mm)	Flushing Hole	Weight (kg)	Part Number
Retrac Button Bit, Drop Center Spherical Buttons, R10XX	64	2 1/2	3x10,1x10 6x11	3	2.2	4148300738
Retrac Button Bit, Drop Center Spherical Buttons, R10XX	70	2 3/4	3x10,1x10 6x13	3	2.4	4148300740
Retrac Button Bit Spherical Buttons, R12XX	64	2 1/2	4x10 8x10	2	2.2	4148300737
Retrac Button Bit Spherical Buttons, R12XX	70	2 3/4	4x11 8x11	2	2.4	4148300739
Retrac Button Bit Spherical Buttons, R12XX	76	3	4x11 8x11	2	3.3	4148300742
Retrac Button Bit Spherical Buttons, R12XX	89	3 1/2	4x13 8x13	2	4.8	4148300745

Why Choose KSQ?

Quality Assurance: Strict quality control from raw material to finished product.
Expert Support: Technical guidance to help you select the right bit for your rock type.
Reliable Delivery: Efficient production and logistics to keep your project on schedule.
